KEY SPECS
Number of rows: 30 or 34 (Available from factory)
Row spacing: 30 rows: 50 cm 19.7 in. 34 rows: 45 cm 17.7 in.
Row unit seed hoppers: Central Commodity System (CCS™)
Capacity: Total 2.270 L 64.4 bu
Seed Meters:
Base: MaxEmerge™ 5
ROWS AND ROW SPACING
Number of rows: 30 or 34 (Available from factory)
Row spacing: 30 rows: 50 cm 19.7 in. 34 rows: 45 cm 17.7 in.
TIRES
Base: 7.00 16 10 PR
Quantity: Eight
ROW UNITS
Type: EmergePro™ row-unit Planting Row with Gauge Wheels Away
Opener: Tru-Vee seed opener disks
Depth gauging: Gauge Wheels
Adjustment: T-handle
Row unit seed hoppers: Central Commodity System (CCS™)
Capacity: Total: 2,270 L 64.4 bu
Material: Polyethylene
Row unit down force: Yes
Mechanical: Spring – Available for MaxEmerge™ 5
Seed tube sensors:
Base: Yes
SEED METERS
Base: MaxEmerge™ 5
DRIVE SYSTEM
Base: Mechanical Electrohydraulic
Optional: SeedStar™ 2
Seed transmission: Pro-shaft™ drive (MaxEmerge™ 5)
MARKERS
Type: Hydraulic (optional)
CLOSING SYSTEM
Rubber tire closing system: No
Adjustment: T-handle
FERTILIZER
Fixed-rate application: Yes
Variable-rate application: Yes with Electrohydraulic transmission
Fertilizer opener type: Pantographic Multi-furrow – Hoe-type and double-disk Pivoted Multi-furrow – Hoe-type and double-disk
Dry fertilizer:
Number of hoppers: Eight
Hopper capacity: 6370 L 1682.8 gal.
Fertilizer meter types: ProMeter™
DIMENSIONS
Transport width (without markers): 14.6-15.9 m 51-52 ft
Transport length: 6 m 24.6 ft
Transport height: 2.5 m 8.2 ft
Transport weight: 17300 kg 38140 lb
AG MANAGEMENT SOLUTIONS
Map-based seeding: Yes
Field documentation: Yes
ADDITIONAL INFORMATION
Recommended tractor horsepower: 340-440.1 335.3-434 hp Note: The required tractor power values are variable and depend on numerors factors, such as planting speed, planting depth, and soil conditions, among others.

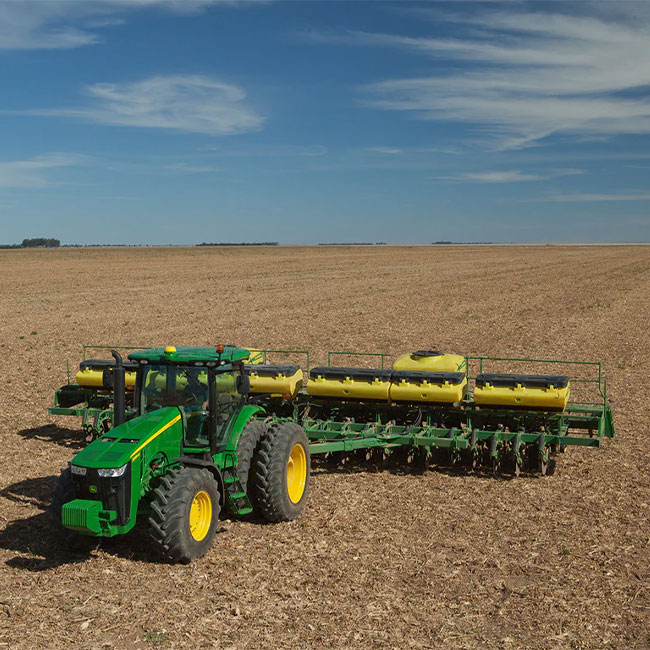

2134 Drawn Planter
The 2134 Planter provides better performance in irregular, clay and straw soils. It attaches to the tractor drawbar. Furthermore, it is available in 30 and 34 rows configurations.
• 25 percent less ground disturbance with the 2100 pivoted multi-opener
• 23 percent better control of seed placement due the combination of the EmergePro™ row-unit with the 2100 pivoted multi-opener
• 16 percent better plant stand
• 8 percent more fuel savings since the 2100 pivoted multi-opener requires less tractor power
• 7 percent more seed savings with the RowCommand™ system
• 3 percent more fertilizer savings with Section Control
• Increased control of operation with the variable rate of seed and fertilizer
• Accurate straw cutting, even in difficult conditions
• Perfect furrow opening
-
- Combine Advisor™ package helps to set, optimize and automate main combine functions when conditions change.
- Fully automated yield sensor calibration with ActiveYield™ supplies accurate data with no time spent calibrating.
- Comfortable S700 cab is common with tractors and sprayers for ease of use.
- Continued quality manufacturing of S-Series combines maximizes uptime and productivity.
-
A great source of protein and rich source Niacin, Vitamin B12, iron and zinc. Meat is the most significant dietary source of carnitine.
-
For extra-wide cutting in your largest fields, get the versatile performance of a 900 Series MoCo. The 946 Mower-Conditioners offer a wide cutting width without sacrificing in-field maneuverability or performance. With a cutting width of 13 feet on the 946, MoCo’s will make short work of your largest fields.
• Modular-design cutterbar
• Steel roll conditioners
• Adjustable roll pressure
• Hydraulic tongue positioning -
A great source of protein and rich source Niacin, Vitamin B12, iron and zinc. Meat is the most significant dietary source of carnitine.
-

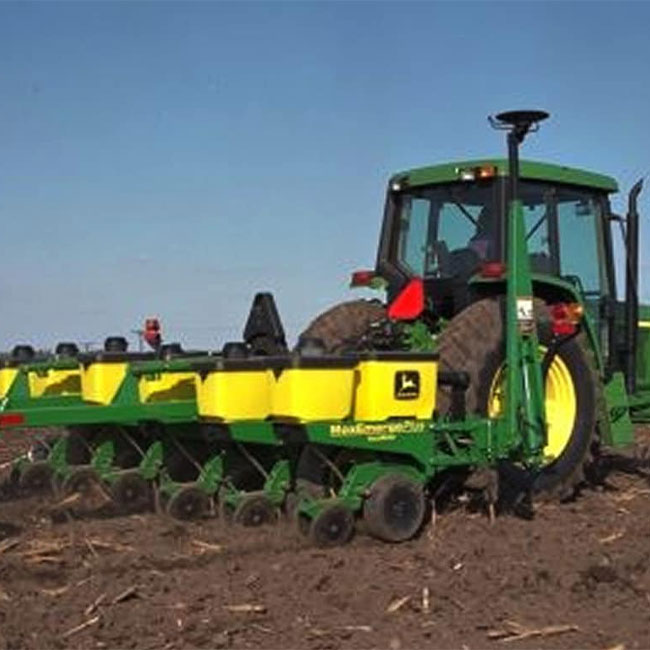

The 2115 Planter is an economical drawn planter that attaches to the tractor drawbar and offers tremendous versatility. It is available in 13 and 15 rows configurations.
• 25 percent less ground disturbance with the 2100 pivoted multi-opener
• 23 percent better control of seed placement due the combination of the EmergePro™ row-unit with the 2100 pivoted multi-opener
• 16 percent better plant stand
• 8 percent more fuel savings since the 2100 pivoted multi-opener requires less tractor power
- Combine Advisor™ package helps to set, optimize, and automate main combine functions when conditions change.
- Fully automated yield sensor calibration with ActiveYield™ supplies accurate data with no time spent calibrating.
- Comfortable S700 cab is common with tractors and sprayers for ease of use.
- Continued quality manufacturing of S-Series combines maximizes uptime and productivity.
POWER AND TECHNOLOGY
- 200HP Power.
- New power ratings and increased technology to make your business more productive.
- Excellent performance for heavy work, with low fuel consumption.
- Excellent performance, from transport to soil preparation.
- Technology features included as standard: John Deere Engine with Common Rail electronic injection; two transmission options: PowrQuad Plus™ and AutoQuad™
- AutoQuad™: changes gear automatically, in accordance with engine load and the front axle option with Triple Link Suspension (TLS).
- John Deere PowerTech 4.5 L Engine,powerful,fuel-efficient, reliable, maintenance friendly.
- Configured with John Deere Gearbox, high-efficiency and easy operation.
- The driver’s cab,with a superlative visual field, is spacious and comfortable with good seal performance and low noise.
- The hydraulic system is stable and reliable, fuel tank capacity was increased to 150 L.
- 9 l PowerTech PSS engine, 335 kW/455 hp max Power (ECE R120)
- Channel width 1,670 mm
- Total active separation area (ISO 6689:1997): 4.00 m²
- Total cleaning shoe area (with front chaffer according to ISO 6689:1997): 6.30 m²
- Interactive Combine Adjust (ICA) automatic combine optimisation.
- New John Deere Tracks with 30% bigger footprint
- 8 l PowerTech PSS engine, 224 kW/305 hp max Power (ECE R120)
- Channel width 1,400 mm
- Total active separation area (ISO 6689:1997): 3.30 m²
- Total cleaning shoe area (with front chaffer according to ISO 6689:1997): 5.20 m²
- Interactive Combine Adjust (ICA) automatic combine optimisation.
- Struck capacity 10.7 m³ (14 cu. yd.)
- Heaped capacity 16.4 m³ (21.5 cu. yd.)
- John Deere PowerTech™ 13.5L PSS
- New and improved e18™ PowerShift Transmission
- AirCushion Suspension
- New CommandView™ III cab
- Struck capacity 10.7 m³ (14 cu. yd.)
- Heaped capacity 13.8 m³ (18 cu. yd.)
- Struck capacity: 10.4 m³ (13.6 cu. yd.)
- Heaped capacity: 15.3 m³ (20.0 cu. yd.)
- Bowl width: 3.2 m (10 ft. 6 in.)
- 45 engine HP at 2100 rated ERPM
- Power Steering
- Oil Immersed Disc Brakes
- Dry Type Air Filter
- Oil Jet for Piston Cooling
- Top Shaft Lubrication
- Piston Jet Cooling
- The feed rate has been increased to 9 kg per second, equipped with a newly upgraded threshing separation device, which is superior to the same level
- The newly optimized grid intaglio works perfectly with the new drum to ensure that the grains are separated from the material flow quickly and efficiently
- Equipped with John Deere 165 horsepower 4045 turbocharged with high pressure common rail electronic control engine, high reliability and good fuel economy
- Increase the fuel tank volume up to 300 liters, 4.2 cubic meters super large grain tank, unloading speed of 36 liters per second
Simple and reliable – with its robust quality and great versatility, this tractor is made to meet your needs: an uncomplicated machine that can withstand the hardest loads yet is still attractively priced.
