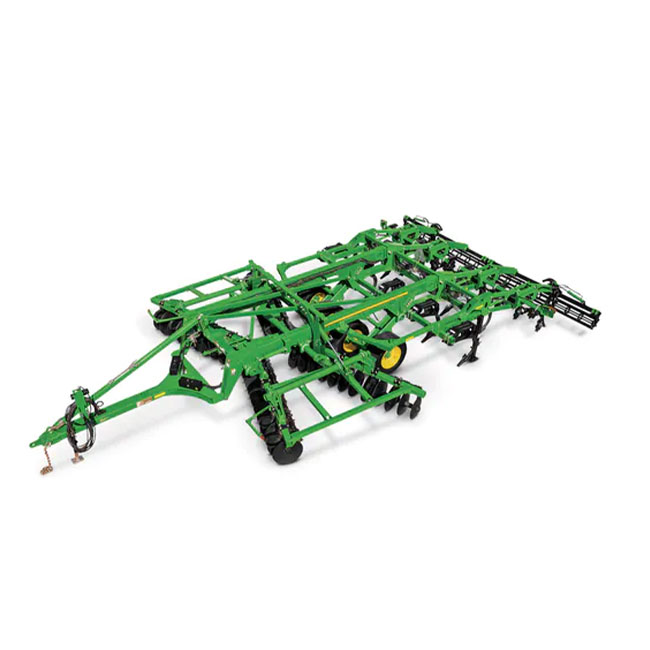

Size

Sizes: 12-ft. 6-in. (3.8 m), 14-ft (4.3m), 17-ft. 6-in. (5.3 m), 18-ft. (5.5 m) widths
Number of blades: 16, 20 and 24
Transport width: 14 ft. 10 in. (4.5 m), 19 ft. 10 in. (6 m); Narrow transport option: 16 ft. 10 in. (5.1 m)

HYDRAULIC CYLINDERS

Depth control 3.5 x 12 in. (89 x 305 mm)

DEPTH CONTROL SYSTEM

Base equipment: Crank-adjust, single-point depth control
Optional: TouchSet depth control

SPACES

Spaces: 24 in. (610 mm), 30 in. (762 mm)

STANDARDS

Number of standards: 5, 7 and 9

Cushion-trip (Base): Draft trip force: 4,100 lb. (1859 kg); Trip height: 13 in. (330 mm); Protection above 13 in.: Shear bolt
Spring-reset rock: Draft trip force: 3,200-4,700 lb. (factory set at 3,200 lb.); Trip height: 22 in. (559 mm); Protection above 13 in.: None required
Standard type: Parabolic with wear shins

MAXIMUM UNDERFRAME CLEARANCE

Spring-reset rock and cushion-trip standard: 34.5 in. (876 mm), 36 in. (914 mm), 37.5 in. (953 mm)

MAXIMUM OPERATING DEPTH

Spring-reset rock and cushion-trip standard: 13 in. (330 mm), 14.5 in. (368 mm), 16 in. (406 mm)

OPERATING SPEED

Operating Speed: 5 to 7 mph (8 to 11.25 km/h)

GROUND ENGAGING COMPONENTS

Base equipment: 2.75-in. (70 mm) cast LaserRip™ point; 5-in. (127 mm) cast LaserRip point; 7-in. (178 mm) cast LaserRip point; 10-in. (254 mm) cast LaserRip point
Coverboards optional: 4 in. (102 mm), 6 in. (152 mm), 8 in. (203 mm)

DISK PROTECTION

Disk Protection: On-the-go hydraulic depth adjustment, active down-pressure system
Max depth: 4 in. (102 mm)
Range of adjustment: 4-in. (102 mm) adjustable completely out of ground through all ripping depths

DISK GANG COMPONENTS

Type of standard: C-spring (each blade individually mounted)
Base equipment blades: 22x.256-in. (559×6.5 mm) front and rear solid spherical low concavity
Blade spacing: 17.25 in. (438 mm)
Gang bearing: Maintenance-free
Hub: DuraPak bearing

TRU-POSITION REAR CONDITIONER

Tru-Position Rear Conditioner: Type of standard: C-Shank individually mounted with coil-spring protection; Vertical trip force: 280 lb. (127 kg); Base equipment blades: 18x.134-in. (457×3.4 mm) front and rear solid spherical; Depth control: Hydraulically adjustable; Gang bearing: Maintenance-free

HITCH

Hitch: Rigid single-tube with turnbuckle adjustment

HORSEPOWER REQUIREMENTS

Horsepower Requirements: Per foot: 15 to 22 hp (11 to 16 kw); Per standard: 37 to 55 hp (28 to 41 kw)

TIRES

Tires: 11L-15, 12.5L-15

TANDEM WALK-OVER WHEELS

Tandem Walk-Over Wheels: Standard: 7S30 and 9S24; Optional: 5S30 and 7S24
SAFETY FEATURES

Safety Features: SMV sign and reflectors
