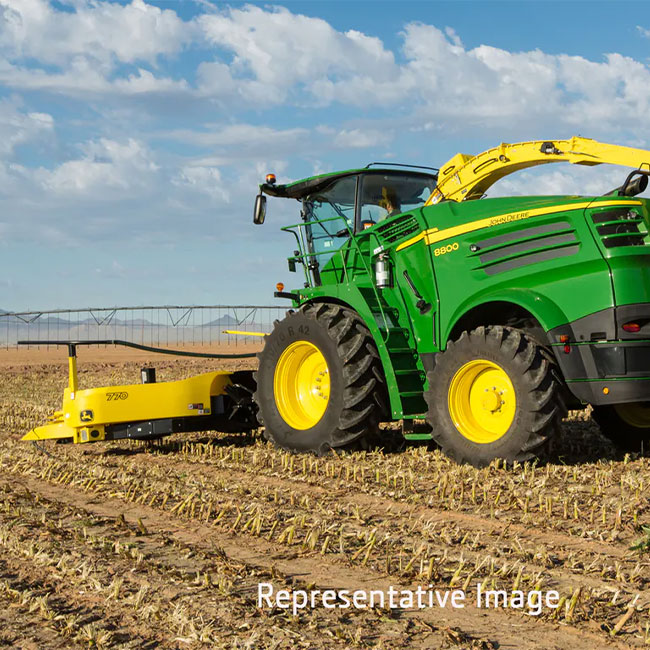

ENGINE POWER
Maximum power at 1800 rpm: 460 kW 625 PS / 616 hp
Rated power at 2100 rpm: 428 kW 582 PS / 574 hp
Fuel tank capacity: 1100 L 290.6 U.S. gal.
ENGINE
Manufacturer: John Deere
Type: PowerTech? PSS 13.5L Exhaust emission regulation compliancy – Final Tier 4
Model: Europe: 6135HZ014 North America: 6135HZ013
Displacement: 13.5 L 823.8 cu in.
Cylinders: In line six
Fuel system: Unit injectors plus four valves
COOLING SYSTEM
Cooling system capacity: 113 L 29.85 U.S. gal.
Cooling fan drive: Direct
DRIVELINE
Ground drive: Standard: Hydrostatic, 3-speed – manual shift with helical gears Engine rpm on road: 1650 rpm Optional: Prodrive?, autoshift transmission, differential lock (automatic and manual), automatic wet brake system Engine rpm on road: 1400-2100 rpm
Hydraulics: Load sensing
Crop harvesting unit: Harvest channel standard
Crop flow components: Low-friction crop-flow concept
Main clutch: Dry clutch
Number of discs: One disc
Main driveband: Reinforced with Kevlar inserts
Belt tensioning: Active, hydraulic pressure
Main driveband, polybelt belts: Eight belts
ELECTRICAL SYSTEM/ELECTRICAL AND HYDRAULIC SYSTEM
Type/voltage: 12 / 24 V
Batteries/battery quantity/capacity: 2 x 174 amp-hr
Alternator: 12 V – 200 amp 24 V – xxx amp
Hydraulic system capacity: 50 L 13.2 U.S. gal.
GROUND DRIVE
Type: Standard: hydrostatic, 3-speed manual shift Optional: Prodrive?, autoshift transmission
Differential lock: Manual or automatic (optional comes with ProDrive)
Maximum transport speed: Hydrostatic transmission: 30 km/h 18.6 mph ProDrive transmission: 40 km/h 24.9 mph
Rear axle type: Hydro-mechanical 4WD
Automatic wet brake system: Available with ProDrive transmission
Engine rpm – Management: Optional
CAB
Tilt and extend steering column: Standard
Air conditioning and heater: Standard – ClimaTrak
Cool box: Optional
Trainee seat: Standard
Hectare counter: Standard
Operator information system: Cornerpost display
CAN-BUS electronics: Standard
Operator’s seat: Air-suspension seat standard
Side window wiper: Rear and side window wiper optional Parallel-type windscreen wiper
Electric adjust and heated: Optional on rear view mirrors
Rear view mirrors: Standard
MACHINE MANAGEMENT SOLUTIONS
Yield monitoring: Harvest Monitor? optional
Documentation: Harvest Doc? optional\
Crop analysis: HarvestLab? optional
Length-of-cut control based on crop parameter: Crop analysis
Satellite (GPS) assisted steering: AutoTrac? optional
CROP-HARVESTING UNITS
Header height control: Advanced header control (AHC) optional
Grass pick-ups: 3.0, 4.0, 4.5 m 9.8, 13.1, 14.8 ft
LENGTH OF CUT
Range: 40 knives: 7-26 mm (0.275-1.0 in.) LOC / 1 mm (0.04 in.) steps 48 knives: 6-22 mm (0.24-0.87 in.) LOC / 1 mm (0.04 in.) steps
FEEDING SYSTEM/FEEDROLLS
Feed roll frame opening: Swing away, 37-45 degree (angle)
Number: Four
Metal detector: Standard Stone detector is optional
Width, front: 830 mm 32.7 in.
Standard feed roll drive: Infinitely header drive speed standard
CUTTERHEAD
Knife drum width: 850 mm 33.5 in.
Knife drum diameter: 670 mm 26.3 in.
Speed at rated engine speed: Standard – 1100 rpm Optional – 1200 rpm
Knife types available (crop): Straight – grass Curved – corn
Number of knives: 40 or 48
KNIFE SHARPENING SYSTEM
Reverse rotation: Yes
Automatic from cab: Yes, remote from cab
Reverse drive: Standard
KERNEL PROCESSOR
Type: Serrated roller
Quick-change: Quick kernel processor – swing in/swing out
SERRATED ROLLER (KERNEL PROCESSOR)
Maize, roll teeth number (speed differential): 118 – 24 or 32 percent
Wholecrop, roll teeth number (speed differential): 178 – 32 percent
Sorghum, roll teeth number (speed differential): 238 – 32 percent
Weight: 163.3 kg 360 lb
DISK TYPE (KERNEL PROCESSOR)
Number of disks (top/bottom): 17/16 plus 2-1/2
Diameter of disks: 240 mm 9.45 in.
Weight: 172.4 kg 380 lb
BLOWER/CROP ACCELERATOR
Number of blades: 10
SPOUT
Rotation, degrees: 210 degree (angle)
Hydraulic height position: Hydraulic raise and lower standard Automatic spout positioning optional
Double-cap deflection: Standard
MAINTENANCE
Rotary radiator screen cleaner: Standard
Automatic lubrication system: AutoLube optional
Engine oil and filter change duration: JD+50? II oil: 350 hours Other oil: 250 hours
VEHICLE
With front tires: 710/70R42
With rear tires: 620/60R30
Transport length (without header): 6.5 m 21.4 ft
Transport width (without header): 3-3.5 m 9.84-11.5 ft
Transport height (to cab roof): 3.89 m 12.75 ft
Working height (maximum): Height to spout: 6.60 m 21.65 ft
PROPELLING DRIVE
Standard: Hydrostatic, 3-speed – manual shift with helical gears
TRANSMISSION
Type: Standard: Hydrostatic, 3-speed – manual shift with helical gears Hydro-mechanical 4WD rear axle optional
