Non-stop round module harvesting solution. 13.5L Tier 4 engine with 530 peak horsepower. ProDrive™ transmission with full-time 4WD. 606SH or 608SH available headers.

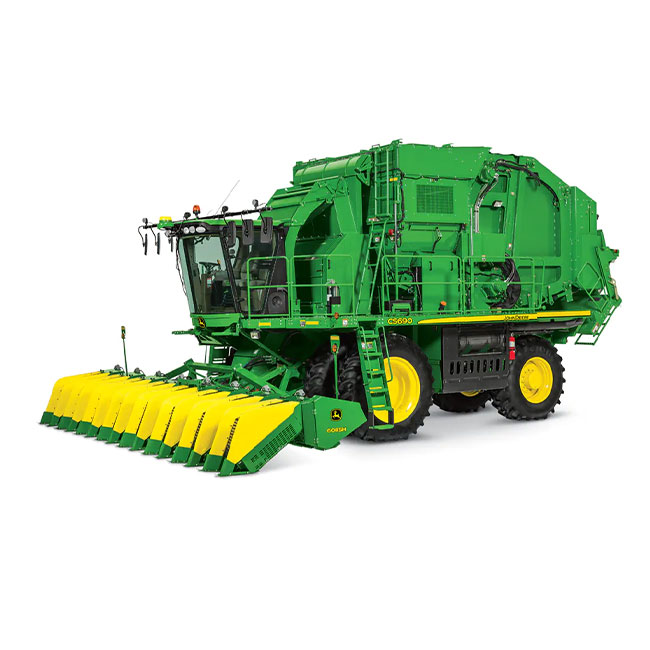

CS690 Cotton Picker
Non-stop round module harvesting solution. 13.5L Tier 4 engine with 530 peak horsepower. ProDrive™ transmission with full-time 4WD. 606SH or 608SH available headers.
-
• Clip for Tractor hydraulics
• Note: This product is returnable only if it returned in its original packaging and has not been installed. -
• 2.2m MegaWide™ pickup for better shaped bales and improved crop pickup in wide, windblown, or scattered windrows.
• Optional 2.5m Premium MegaWide™ pickup, tooth-to-tooth, is the widest in the industry.
• Designed by John Deere, the moisture sensor is the industry’s most accurate across the full range of moisture levels.
• BalerAssist™ drivetrain system option allows you to hydraulically back out plugs with a remote.
• Optional 21-knife precutter has a drop floor that slides out for easier access and maintenance. -
A great source of protein and rich source Niacin, Vitamin B12, iron and zinc. Meat is the most significant dietary source of carnitine.
-
Designed for superior gathering performance when harvesting standing, down or lean crop.
-
Designed for superior gathering performance when harvesting standing, down or lean crop.
POWER AND TECHNOLOGY
- 230HP Power.
- New power ratings and increased technology to make your business more productive.
- Excellent performance for heavy work, with low fuel consumption.
- Excellent performance, from transport to soil preparation.
- Technology features included as standard: John Deere Engine with Common Rail electronic injection; two transmission options: PowrQuad Plus™ and AutoQuad™
- AutoQuad™: changes gear automatically, in accordance with engine load and the front axle option with Triple Link Suspension (TLS).
- John Deere PowerTech™ 13.5L PSS
- New and improved e18™ PowerShift Transmission
- AirCushion Suspension
- New CommandView™ III cab
- 8 l PowerTech PSS engine, 224 kW/305 hp max Power (ECE R120)
- Channel width 1,400 mm
- Total active separation area (ISO 6689:1997): 3.30 m²
- Total cleaning shoe area (with front chaffer according to ISO 6689:1997): 5.20 m²
- Interactive Combine Adjust (ICA) automatic combine optimisation.
Main applicable crops: Wheat, soybean, rape, sorghum, millet, etc.
Cutting width (m): 4.57 or 5.4
Feeding amount (kg/sec): Wheat: 7.0 (4.57 meters cutting header); 8.0 (5.4 meters cutting header)
Ground clearance (m): 0.495
Threshing drum type: Patterned
Roller width×diameter (m): 1.28×0.61
Separation mechanism type: Five-button document stepper
Separation area (square meters): 5.38
Type of cleaning organization: Double-layer vibrating wind screen
Cleaning area (square meters): 4.3
Grain tank volume (m3): 4.6
engine model: JD6068
Engine power (hp/kw): 185/136
Dimensions (length × width × height, meters): 7.13×3.26×3.84 (transport size without header)
Structure mass (kg): 7190 (without header without chopper)
Walking speed (km/h) Mechanical: 1.05-20 (forward gear) 2.30-5.55 (reverse gear) Hydraulic pressure: 0-24
Front wheel track (m): 2.8
Rear wheel track (m): 2.57
Air Conditioning: Optional heating and cooling air conditioning
Option Wheat accessories, corn accessories
Improved non-stop round module harvesting with 4.4 mph max row unit sync speed. 13.5L Tier 4 Engine with 590 peak horsepower. Next generation ProDrive™ with anti-slip regulation. New Premium LED lighting package.
- Power Steering
- Dry Air Cleaner
- Oil Immersed Disk Break
- Collar Shift Gear Box
- Top Shaft Lubrication
- Piston Cooling Jet
- The feed rate has been increased to 9 kg per second, equipped with a newly upgraded threshing separation device, which is superior to the same level
- The newly optimized grid intaglio works perfectly with the new drum to ensure that the grains are separated from the material flow quickly and efficiently
- Equipped with John Deere 165 horsepower 4045 turbocharged with high pressure common rail electronic control engine, high reliability and good fuel economy
- Increase the fuel tank volume up to 300 liters, 4.2 cubic meters super large grain tank, unloading speed of 36 liters per second
- 9 l PowerTech PSS engine, 335 kW/455 hp max Power (ECE R120)
- Channel width 1,670 mm
- Total active separation area (ISO 6689:1997): 4.00 m²
- Total cleaning shoe area (with front chaffer according to ISO 6689:1997): 6.30 m²
- Interactive Combine Adjust (ICA) automatic combine optimisation.
- New John Deere Tracks with 30% bigger footprint
- 4 Wheel Drive
- Smart Brakes
- 9F/3R or 12F/12R PowrReverser™ transmission
- HVAC Cab or Open Operator’s station
- Struck capacity 10.7 m³ (14 cu. yd.)
- Heaped capacity 16.4 m³ (21.5 cu. yd.)
- Struck capacity: 9.2 m³ (12.0 cu. yd.)
- Heaped capacity: 12.2 m³ (16.0 cu. yd.)
- Bowl width: 3.7 m (12 ft. 0 in.)
- Combine Advisor™ package helps to set, optimize, and automate main combine functions when conditions change.
- Fully automated yield sensor calibration with ActiveYield™ supplies accurate data with no time spent calibrating.
- Comfortable S700 cab is common with tractors and sprayers for ease of use.
- Continued quality manufacturing of S-Series combines maximizes uptime and productivity.
