KEY SPECS
Number of rows: 20 or 22 (Available from factory)
Row spacing: 20 rows: 50 cm 19.7 in. 22 rows: 45 cm 17.7 in.
Row unit seed hoppers: Central Commodity System (CCS™)
Capacity: Total 2.270 L 64.4 bu
Seed Meters:
Base: MaxEmerge™ 5
ROWS AND ROW SPACING
Number of rows: 20 or 22 (Available from factory)
Row spacing: 20 rows: 50 cm 19.7 in. 22 rows: 45 cm 17.7 in.
TIRES
Base: 7.00 16 10 PR
Quantity: Eight
ROW UNITS
Type: EmergePro™ row-unit Planting Row with Gauge Wheels Away
Opener: Tru-Vee seed opener disks
Depth gauging: Gauge Wheels
Adjustment: T-handle
Row unit seed hoppers: Central Commodity System (CCS™)
Capacity: Total: 2,270 L 64.4 bu
Material: Polyethylene
Row unit down force: Yes
Mechanical: Spring – Available for MaxEmerge™ 5
Seed tube sensors:
Base: Yes
SEED METERS
Base: MaxEmerge™ 5
DRIVE SYSTEM
Base: Mechanical Electrohydraulic
Optional: SeedStar™ 2
Seed transmission: Pro-shaft™ drive (MaxEmerge™ 5)
MARKERS
Type: Hydraulic (optional)
CLOSING SYSTEM
Rubber tire closing system: Yes
Adjustment: T-handle
FERTILIZER
Fixed-rate application: Yes
Variable-rate application: Yes with Electrohydraulic transmission
Fertilizer opener type: Pantographic Multi-furrow – Hoe-type and double-disk Pivoted Multi-furrow – Hoe-type and double-disk
Dry fertilizer:
Number of hoppers: Four
Hopper capacity: 4240 L 1120 gal.
Fertilizer meter types: ProMeter™
DIMENSIONS
Transport width (with markers): 11.4-11.9 m 37.4-39 ft
Transport width (without markers): 10.6-11.1 m 34.78-36.42 ft
Transport length: 6 m 24.6 ft
Transport height: 2.5 m 8.2 ft
Transport weight: 13100 kg 28880 lb
AG MANAGEMENT SOLUTIONS
Map-based seeding: Yes
Field documentation: Yes
ADDITIONAL INFORMATION
Recommended tractor horsepower: 240-280.1 cv 236.7-276.2 hp Note: The required tractor power values are variable and depend on numerors factors, such as planting speed, planting depth, and soil conditions, among others.

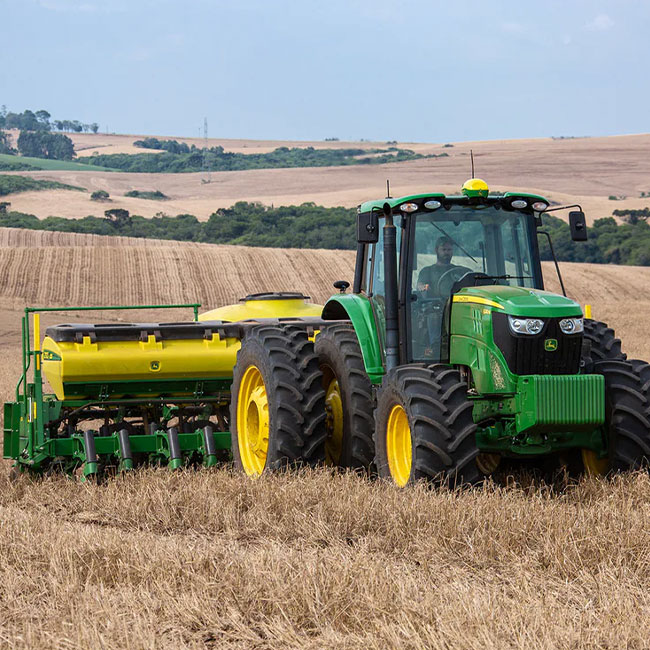

2122 Drawn Planter
The 2122 Drawn Planter is a 20 or 22 rows planter that attaches to the tractor drawbar.
• 25 percent less ground disturbance with the 2100 pivoted multi-opener
• 23 percent better control of seed placement due the combination of the EmergePro™ row-unit with the 2100 pivoted multi-opener
• 16 percent better plant stand
• 8 percent more fuel savings since the 2100 pivoted multi-opener requires less tractor power
• 7 percent more seed savings with the RowCommand™ system
• 3 percent more fertilizer savings with Section Control
-
• HY-Gard for transmission (20 Litre )
• Note: This product is not returnable. (N) -
Vegetables are rich in many vitamins and minerals that are good for your health. These include vitamins A (beta-carotene), C and E, magnesium, zinc, phosphorous and folic acid.
Vegetables nutrients help reduce obesity, lower cholesterol and lower your blood pressure.
-
Chemicals, Nutrients & Fertilizers, Compound Fertilizers, Farming Inputs, Fertilizers, Uncategorized
YaraMila ACTYVA is a combination of nitrogen (N), phosphorus (P) and potassium (K) designed to optimize crop yield and quality. YaraMila™ Actyva contains an excellent combination of immediately available Nitrate Nitrogen and slower releasing Ammonium Nitrogen.
This balanced nitrogen source results in faster growth responses, higher yield and bigger produce. Also, a more efficient nitrogen source means lower loss of nutrients to the environment.
Potassium is important for all crops. It improves plant tolerance to stress and many plant diseases. Potassium is also vital to the regulation of water movement through the plant.
In addition to nitrogen (N), phosphorus (P) and potassium (K), YaraMila™ Actyva also contains other secondary and micronutrients that are essential for your specific crop – such as sulphur (S), magnesium (Mg) and zinc (Zn).
YaraMila™ Actyva prill is specifically designed to allow easy and accurate spreading by machine or hand.
-
• Pin for Tractor hitch and drawbar
• Note: This product is generally not returnable. The only exception to this is when the part in question is a stock item, in which case a return may be accepted.
- Turbo charged, fuel efficient John Deere engine 4039, 100 HP, 2100 RPM and 4 cylinders.
- SynchroSmart enabled.
- Best suited for crops like Rice, Wheat, Soyabean and Corn
- Threshing system: Rasp bar & Spike tooth
- Separation Type: Straw walker with 8 Wing Beater & Beater Grate
POWER AND TECHNOLOGY
- 230HP Power.
- New power ratings and increased technology to make your business more productive.
- Excellent performance for heavy work, with low fuel consumption.
- Excellent performance, from transport to soil preparation.
- Technology features included as standard: John Deere Engine with Common Rail electronic injection; two transmission options: PowrQuad Plus™ and AutoQuad™
- AutoQuad™: changes gear automatically, in accordance with engine load and the front axle option with Triple Link Suspension (TLS).
• Struck capacity 10.7 m³ (14 cu. yd.)
• Heaped capacity 16.4 m³ (18 cu. yd.)
- Struck capacity 10.7 m³ (14 cu. yd.)
- Heaped capacity 16.4 m³ (21.5 cu. yd.)
- 4 Wheel Drive
- Smart Brakes
- 9F/3R or 12F/12R PowrReverser™ transmission
- HVAC Cab or Open Operator’s station
- 9 l PowerTech PSS engine, 285 kW/387 hp max Power (ECE R120)
- Channel width 1,400 mm
- Total active separation area (ISO 6689:1997): 3.30 m²
- Total cleaning shoe area (with front chaffer according to ISO 6689:1997): 5.20 m²
- Interactive Combine Adjust (ICA) automatic combine optimisation.
- New John Deere Tracks with 30% bigger footprint
- Struck capacity 10.7 m³ (14 cu. yd.)
- Heaped capacity 13.8 m³ (18 cu. yd.)
- Adopting CTS technology—cut-through threshing drum and dual-axial flow plate-tooth separation drum structure
- Reliable John Deere 6.8L turbocharged engine with up to 201 horsepower
- Efficient cleaning system
- Optional John Deere mature hydrostatic drive device, shorten the time of land transfer and reduce driver fatigue
POWER AND TECHNOLOGY
- 215HP Power.
- New power ratings and increased technology to make your business more productive.
- Excellent performance for heavy work, with low fuel consumption.
- Excellent performance, from transport to soil preparation.
- Technology features included as standard: John Deere Engine with Common Rail electronic injection; two transmission options: PowrQuad Plus™ and AutoQuad™
- AutoQuad™: changes gear automatically, in accordance with engine load and the front axle option with Triple Link Suspension (TLS).
- The feed rate has been increased to 9 kg per second, equipped with a newly upgraded threshing separation device, which is superior to the same level
- The newly optimized grid intaglio works perfectly with the new drum to ensure that the grains are separated from the material flow quickly and efficiently
- Equipped with John Deere 165 horsepower 4045 turbocharged with high pressure common rail electronic control engine, high reliability and good fuel economy
- Increase the fuel tank volume up to 300 liters, 4.2 cubic meters super large grain tank, unloading speed of 36 liters per second
POWER AND TECHNOLOGY
- 200HP Power.
- New power ratings and increased technology to make your business more productive.
- Excellent performance for heavy work, with low fuel consumption.
- Excellent performance, from transport to soil preparation.
- Technology features included as standard: John Deere Engine with Common Rail electronic injection; two transmission options: PowrQuad Plus™ and AutoQuad™
- AutoQuad™: changes gear automatically, in accordance with engine load and the front axle option with Triple Link Suspension (TLS).
Improved non-stop round module harvesting with 4.4 mph max row unit sync speed. 13.5L Tier 4 Engine with 590 peak horsepower. Next generation ProDrive™ with anti-slip regulation. New Premium LED lighting package.
